Titanium Flanges Suppliers

At Pakshak Steel, we specialise in offering high-quality titanium flanges to suit your industrial requirements. As a reliable titanium flange manufacturer, we are committed to providing a wide range of titanium flanges that outperform others, possess exceptional properties and are available in different sizes and dimensions options, all at affordable prices.

What Are Titanium Flanges?
Titanium flanges are critical components employed to join pipes, valves, or pumps in different systems. They are used as connectors that provide a leak-proof and safe passage of fluids or gases. Titanium is known for its outstanding corrosion resistance & lightness, making it the ideal material for these flanges making them fit for various uses. We also supply titanium blind flanges and titanium socket weld flanges which are leak-proof and reliable connectors for use in different industrial applications.

Titanium Flanges, Titanium Flanges Suppliers, 6al 4v Titanium Flange Price, Titanium Blind Flanges, Titanium Spectacle Blind Flange, Titanium Lap Joint Flange



Why choose Titanium Flanges?

  • Our titanium flanges are crafted from premium-grade titanium alloys, resulting in exceptional properties.
  • These flanges have excellent corrosion resistance even in extreme environments like marine or chemical processes.
  • Their impressive strength-to-weight ratio assures consistent operation without contributing unnecessary weight to the system.
  • Also, titanium flanges retain their strength even at high temperatures and are hence well suited to applications where heat resistance is critical.


Titanium Flange, Titanium Weld Neck Flange, Titanium Pipe Flange, Titanium Slip On Flanges, tTitanium Flange Manufacturer, Titanium Socket Weld Flanges, Titanium Flanges Uk, Titanium Suppliers in India,


Uses of Titanium Flanges:

Titanium flanges are widely used in all industries. Their superior properties, ranging from aerospace and marine applications to chemical processing and power generation, make them the best fit. They are used in applications that need corrosion resistance, strength, and reliability, including pipelines, exhaust systems and so on.

Being one of the top titanium suppliers in India, we understand that precise size and dimension specifications are essential for effective installations. Our sizes of titanium flanges are extensive, ranging to meet the unique needs of your projects. This variety guarantees a perfect fit and smooth connection, reducing the possibility of leaks or system inefficiencies.

At Pakshal Steel, affordability is our main concern without affecting quality. We provide our titanium flanges at affordable prices without compromising on quality and performance for your budget.

By choosing Pakshal Steel as your titanium flange exporter and supplier, you choose a partner who excels at values, quality, and excellence. Contact us today to explore our range, experience exceptional service, and witness the difference our titanium flanges can make in your industrial endeavours. Your satisfaction is our priority, and we're here to serve you with distinction.

What are the uses of Titanium Flanges?

Titanium Flanges are used in a variety of applications where weight reduction, high strength, & corrosion resistance are important considerations. These include piping systems in chemical processing plants, oil, and gas production facilities, & offshore platforms, as well as in applications where biocompatibility is important, such as in the medical industry.

Is Titanium Flanges Strong?

Yes, Flanges are also strong; they possess a high strength-to-weight ratio, so they can handle high pressure and stress and also minimize the weight of piping systems. Moreover, titanium is very resistant to corrosion, which ensures that its strength and durability are preserved over time.



Titanium Flange Specification


Specification : ASTM B 363 / ASME SB 363

Size : ½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS

Type : Seamless / Welded / Fabricated

Dimensions : ANSI/ASME B16.9, B16.28, MSS-SP-43

Schedule : SCH 10, SCH20, SCH30, SCH40



Types of Titanium Flanges


Titanium Alloy Gr.2 Threaded Flanges

Titanium Threaded Flanges

Titanium Alloy Gr.2 Orifice Flanges

Titanium Orifice Flanges

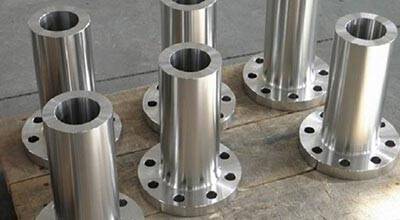

Titanium Alloy Gr.2 Long Weld Neck Flanges

Titanium Long Weld Neck Flanges

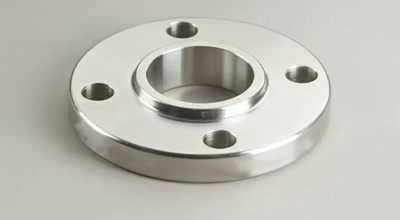

Slip on Flanges

Titanium Slip on Flanges

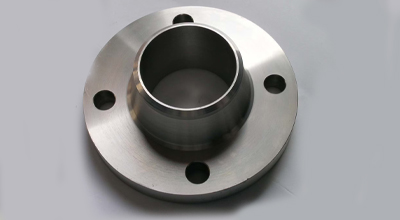

Titanium Weld Neck Flanges

Titanium Weld Neck Flanges

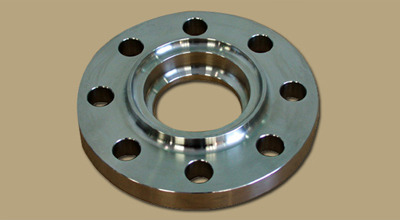

Titanium Socket weld Flanges

Titanium Socket weld Flanges

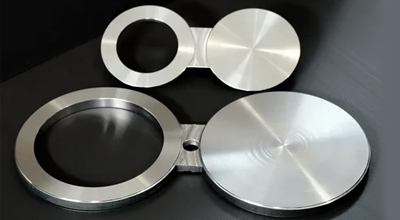

Titanium Spectacle Blind Flanges

Titanium Spectacle Blind Flanges

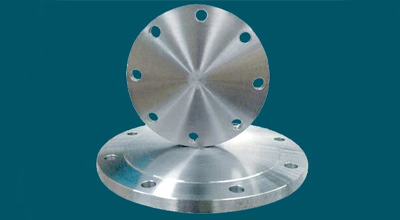

Titanium Blind Flanges

Titanium Blind Flanges

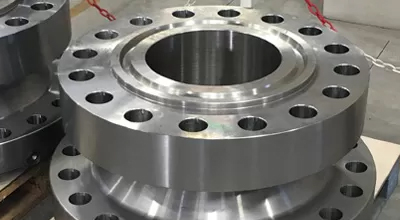

Titanium RTJ Flanges

Titanium RTJ Flanges



Titanium Flange Pressure Temperature Rating

ASME/ ANSI B16.5 Pressure Rating
Temperature °F Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Titanium Slip On Flange Dimensions

NPS Outside Diameter Wall Thickness Raised Face Diameter Diameter Of Hub at Base Hub Length Diameter Of Bore Holes Number Bolts Diameter Diameter Of bolt Circle
  O Q** R X Y** W
1/2 3-1/2 7/16 1-3/8 1-3/16 5/8 .88 4 1/2 2-3/8
3/4 3-7/8 1/2 1-11/16 1-1/2 5/8 1.09 4 1/2 2-3/4
1 4-1/4 9/16 2 1-15/16 11/16 1.36 4 1/2 3-1/8
1-1/4 4-5/8 5/8 2-1/2 2-5/16 13/16 1.70 4 1/2 3-1/2
1-1/2 5 11/16 2-7/8 2-9/16 7/8 1.95 4 1/2 3-7/8
2 6 3/4 3-5/8 3-1/16 1 2.44 4 5/8 4-3/4
2-1/2 7 7/8 4-1/8 3-9/16 1-1/8 2.94 4 5/8 5-1/2
3 7-1/2 15/16 5 4-1/4 1-3/16 3.57 4 5/8 6
3-1/2 8-1/2 15/16 5-1/2 4-13/16 1-1/4 4.07 8 5/8 7
4 9 15/16 6-3/16 5-5/16 1-5/16 4.57 8 5/8 7-1/2
5 10 15/16 7-5/16 6-7/16 1-7/16 5.66 8 3/4 8-1/2
6 11 1 8-1/2 7-9/16 1-9/16 6.72 8 3/4 9-1/2
8 13-1/2 1-1/8 10-5/8 9-11/16 1-3/4 8.72 8 3/4 11-3/4
10 16 1-3/16 12-3/4 12 1-15/16 10.88 12 7/8 14-1/4
12 19 1-1/4 15 14-3/8 2-3/16 12.88 12 7/8 17
14 21 1-3/8 16-1/4 15-3/4 2-1/4 14.14 12 1 18-3/4
16 23-1/2 1-7/16 18-1/2 18 2-1/2 16.16 16 1 21-1/4
18 25 1-9/16 21 19-7/8 2-11/16 18.18 16 1-1/8 22-3/4
20 27-1/2 1-11/16 23 22 2-7/8 20.20 20 1-1/8 25
24 32 1-7/8 27-1/4 26-1/8 3-1/4 24.25 20 1-1/4 29-1/2



Titanium Flanges Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Titanium Gr 2 3.7035 R50400
Titanium Gr 5 3.7165 R56400



Titanium Flanges Chemical Composition

Grade C N O H Ti Fe
Titanium Gr 2 0.10 max 0.03 max 0.25 max 0.015 max bal 0.30 max
Titanium Gr 5 0.10 max 0.05 max 0.20 max 0.015 max bal 0.40 max



Titanium Flanges Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Gr.2 4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 %
Gr.5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %



15mm (1/2") Titanium Flange Weight Chart

Standard
Class
Diameter
Bolt Circle Diameter
Number of Bolts
Bolt Size
Diameter of Bolt Hole
AS4087 Flanges
PN14 Flanges
95
67
4
M12
14
AS 2129 Flange
Table C Flanges
95
67
4
13
14
Table D Flanges
95
67
4
13
14
Table E Flanges
95
67
4
13
14
Table F Flanges
95
67
4
13
14
Table H Flanges
114
83
4
16
17
Table J Flanges
114
83
4
16
17
ANSI B16.5 Flanges
ANSI 150 Flanges
89
60
4
13
16
ANSI 300 Flanges
95
67
4
13
16
ANSI 600 Flanges
95
67
4
13
16
ANSI 900 Flanges
121
83
4
19
22
ANSI 1500 Flanges
121
83
4
19
22
ISO 7005 (DIN) Flange
PN6 Flanges
80
55
4
M10
11
PN10 Flanges
95
65
4
M12
14
PN16 Flanges
95
65
4
M12
14
PN20 Flanges
90
60.5
4
M14
16
PN25 Flanges
95
65
4
M12
14
PN40 Flanges
95
65
4
M12
14



AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)

  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250
  • ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B16.25, Buttwelding Ends
  • ASME B16.36, Orifice Flanges
  • ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60
  • ASME B31.1, Power Piping
  • ASME B31.3, Process Piping
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)
    		•



    Titanium Flanges Standards / Types and Pressure Class :

    ASME/ANSI B 16.5 Slip on Flange, Welding Neck Flange, High Hub Blind Flange, Blind Flange,Lap Joint Flange, Socket Weld Flange, Ring Type Joint Flange, Threaded Flange
    PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
    ASME/ANSI B 16.47 Blind Flange [Series A & B], Welding Neck Flange
    PRESSURE CLASS 75, 150, 300, 400, 600, 900
    ASME/ANSI B 16.36 Slip on Flange, Welding Neck Flange, Threaded Flange
    PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
    BS 4504 SEC 3.1 Hubbed Slip on Flange, Welding Neck Flange, Lapped Pipe End Flange, Hubbed Threaded Flange, Loose Plate Flange, Plate Flange, Blank Flange, Loose Plate With Weld Neck Flange
    PRESSURE CLASS PN 2.5 TO PN 40
    BS 4504[PART 1] Welding Neck Flange, Plate Flange, Hubbed Slip-On Hubbed Threaded,Blank Flange, Loose Plate With Weld On Plate Collar
    PRESSURE CLASS PN 2.5 TO PN 400
    BS 1560 BOSS Socket Welding Flange, Welding Neck Flange, Blind Flange, Slip-On Flange, Lapped Flange, Screwed Boss Flange
    PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
    BS10 Plate Slip-On Flange, Welding Neck Flange, Slip-On Boss Flange, Screwed Boss Flange, Blind Flange
    TABLE D, E, F, H
    DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
    PRESSURE CLASS PN 6 TO PN 100



    Others Types Of Titanium Flanges

    Flange Schedule/Class
    Pipe Size - Pipe Flanges
    Flange Connection Type
    Flange Material
    Max. Pressure
    ASME B16.5 Class 150
    1/2"
    FNPT
    Titanium
    150 psi
    ASME B16.5 Class 150
    1/2"
    Socket Weld
    Forged Titanium
    275 psi
    ASME B16.5 Class 150
    1/2"
    Welded
    Titanium
    150 psi
    ASME B16.5 Class 150
    3/4"
    FNPT
    Titanium
    150 psi
    ASME B16.5 Class 150
    3/4"
    Socket Weld
    Forged Titanium
    275 psi
    ASME B16.5 Class 150
    1-1/4"
    Socket Weld
    Forged Titanium
    275 psi
    ASME B16.5 Class 150
    1-1/2"
    Socket Weld
    Forged Titanium
    275 psi
    ASME B16.5 Class 150
    2"
    FNPT
    Titanium
    150 psi
    ASME B16.5 Class 150
    2"
    Socket Weld
    Forged Titanium
    275 psi
    ASME B16.5 Class 150
    2-1/2"
    Socket Weld
    Forged Titanium
    275 psi
    ASME B16.5 Class 150
    3"
    Socket Weld
    Forged Titanium
    275 psi
    ASME B16.5 Class 150
    4"
    FNPT
    Titanium
    150 psi
    ASME B16.5 Class 150
    4"
    Socket Weld
    Forged Titanium
    275 psi
    ASME B16.5 Class 300
    1/2"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    1/2"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    1"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    1"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    1-1/4"
    FNPT
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    1-1/4"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    1-1/2"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    1-1/2"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    2"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    2"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    2-1/2"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    2-1/2"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    3"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    3"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    4"
    Slip On
    Forged Titanium
    720 psi
    ASME B16.5 Class 300
    4"
    Slip On
    Forged Titanium
    720 psi



    Titanium Flange Price

    Titanium Flanges
    Price List
    High Quality ASTM B381 GR5 Titanium Pipe Welding titanium alloy Flange Price
    ₹ 700-₹ 3500 / Kilogram
    Titanium Spacer Blind Flange Trade
    ₹ 35.28-₹ 3,527.07 / Piece
    titanium steel pipe welding flange price
    ₹ 352.71-₹ 705.42 / Piece
    Titanium A105 RF spectacle slip blind flange price
    ₹ 35.28-₹ 14,108.28 / Piece
    DIN spectacle blind titanium flange titanium blank flange
    ₹ 70.55-₹ 7,054.14 / Piece
    ASME B 16.5 Ti gr2 titanium WN RF pipe flange for oil & gas industry
    ₹ 1,058.13-₹ 5,643.32 / Piece
    gr2 Titanium blind flange 3 4" ANSI 150lbs 300 ibs class
    ₹ 1,410.83-₹ 3,174.37 / Piece
    Titanium exhaust pipe flange for industry maChina
    ₹ 1,410.83-₹ 1,763.54 / Piece
    American Standard Forging titanium alloy blend SW flange class Pipe flang
    ₹ 500-₹ 600 / Pieces
    Titanium ASTM16.5 Gr2 Welding Neck Flange(WN) DN10-DN600
    ₹ 45.86-₹ 52.91 / Piece
