Titanium Pipes & Tubes
Titanium has two important properties like corrosion resistance and strength-to-density ratio, the highest of any metallic element. Titanium Pipes and Tubes are available in two grade Titanium Grade 2 and Grade 5.
It also offers resistance to corrosion from Sea Water, Aqua Region, and Chlorine. Titanium Pipes and Tubes has a moderate weight as it weighs half as much as steel. Tubing is a popular titanium mill product that is utilized in a variety of applications due to its exceptional strength-to-weight ratio and chemical stability.
Moreover, these Pipes and Tubes offer excellent performance when used at high and elevated temperature. The Titanium Alloy Tubes and Pipes are available in different types of specifications, thickness, and dimensions. They are further known best for their exceptional features and properties. We also have different types of Titanium grades like Titanium Fasteners, Titanium Pipe Fittings, Titanium Forged Fittings and more products.
Titanium Pipes, Titanium Tubing, Titanium Seamless Pipe, Titanium Pipe Price, Titanium Pipe Price in India.
- What is Titanium Pipes & Tubes
- Specification For Titanium Pipes & Tubes
- Titanium Pipes & Tubes Equivalent Grades
- Chemical Composition of Titanium Pipes & Tubes
- Mechanical Properties of Titanium Pipes & Tubes
- Titanium Pipe Weight Chart
- Pressure Ratings of Titanium Pipes & Tubes
- Titanium Tube Sizes
- Titanium Alloy Pipes and Tubes Size Chart
- Titanium Pipe Price
- Titanium Alloy Pipes and Tubes Dimensions Price List Chart
- Titanium Pipes & Tubes Industries
- Export Destination of Titanium Pipes & Tubes
- Searches Related to Titanium Pipes & Tubes
Common Uses for Titanium Tubing: -
Titanium Pipes and Tubes are increasingly utilized in a range of Industrial Purposes, the most frequent are:
- Chemical Processing – Titanium pipes and tubes are resistant to corrosion required to survive for an extended period of time in the harsh and acidic environments.
- Oil and Gas – These Pipes and Tubes are used in High pressure and Elevated temperature applications, such as those found in oil and gas wells, as these pipes can sustain continuous operation.
- Aerospace – As these tubing and piping offers provides superior resistance to Fatigue and crack growth, can handle high temperatures without creep, and the lightweight pipes are very valuable for their strength-to-density ratio, hence they are used in aerospace industries.
- Power Generation – Many power plants around the country use Titanium Grade 2 Pipes and Tubes in Condenser and the associated Boiler Tube Failures.
Titanium Grade 5 Tubing, Titanium Grade 2 Tubing, Titanium Welded Pipe, Titanium Tube Suppliers in India.
Features of titanium pipes tubes
• High density
• Tensile strength
• Corrosion resistance
• Good Weldability and Formability
• Withstand at high temperature and environment
While manufacturing these pipes and tubes, both national and international standard specification is covered that even includes specifications like:
Flaring test
Radiography test
Visual inspection
Third party inspection
Hardness test
All these tests are done under the supervision of experts and for all these tests, various test certificates are offered. Once all tests are done, they are packed in various suitable packaging materials. Titanium Pipes and Tubes are made from supreme-quality of raw materials that are made up of iron, nitrogen, and hydrogen. It is a lightweight, serviceable, and cost-effective metal that may be used to make high-quality Pipe/ Tubes. The use of Titanium material can improve product performance and service life. Titanium has a high strength, great corrosion resistance, weld ability, formability, and ductility.
What are Titanium Pipes & Tubes?
Titanium Pipes & Tubes are tubular products made from metal titanium also they are used in a wide range of applications where high strength, low weight, corrosion resistance, & biocompatibility are important factors. Some of the industries that use titanium pipes and tubes include aerospace, medical, chemical processing, and marine. They are also used in heat exchangers, piping systems, and pressure vessels.
What are the uses of Titanium Pipes & Tubes?
Titanium Pipes are used in a variety of industries due to their unique combination of properties, including high strength, low weight, corrosion resistance, and biocompatibility. In the aerospace industry, titanium pipes and tubes are used in a variety of aircraft components, such as engine parts and airframes.
Importance of Titanium Pipes & Tubes?
Titanium Tubes have become increasingly important in various industries due to their unique combination of properties also the high strength-to-weight ratio of titanium, along with its resistance to corrosion and biocompatibility, make it an ideal material for a range of applications.
Titanium Grade 2 Pipe, Titanium Tubing Price, Titanium Grade 5 Pipe, Titanium Tube Suppliers in India.

Titanium Alloy Seamless Pipes

Titanium Tubing

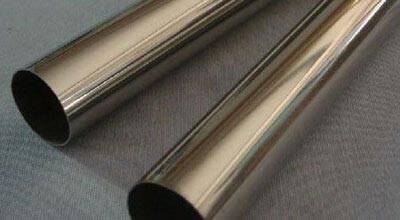

Titanium Alloy EFW Pipes
Titanium Pipe Specifications
Standard : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Tube Range : 1mm OD upto 254mm OD in Thickness 0.1 to 20mm
Pipe Range : ½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS
Form : Round, Square, Rectangular, Hydraulic Etc
Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes
End : Plain End, Bevelled End, Treaded
Length : Single Random, Double Ranidom & Cut Length
Titanium Alloy Pipes and Tubes Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS |
Titanium Gr 2 | 3.7035 | R50400 |
Titanium Gr 5 | 3.7165 | R56400 |
Titanium Alloy Pipes and Tubes Chemical Composition
Grade | C | N | O | H | Ti | Fe |
Titanium Gr 2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | bal | 0.30 max |
Titanium Gr 5 | 0.10 max | 0.05 max | 0.20 max | 0.015 max | bal | 0.40 max |
Titanium Alloy Pipe and Tube Mechanical Properties
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Gr.2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Titanium Pipe Weight Chart
NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 |
17.475 | 386.487 | 259.467 | ||||
0.750 |
19.050 | 420.576 | 282.353 | ||||
42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
Titanium Alloy Pipes and Tubes Pressure Ratings
Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
Titanium Tube Sizes
Wall | Sizes ( O.D.) |
.010 | 1/16" , 1/8" , 3/16" |
.020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
.012 | 1/8" |
.016 | 1/8" , 3/16" |
.028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
.035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
.083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
.095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
.109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
.120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
.125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
.134 | 1" |
.250 | 3" |
.375 | 3 1/2" |
Titanium Alloy Pipes and Tubes Size Chart
Schedule | Wall Thickness(inch, mm) | Sizes(inch, mm) | OD(inch, mm) | ID(inch, mm) |
Schedule 5 | 0.75 " 19.05 |
1.05 " 26.67 |
0.920 " 23.368 |
0.065 " 1.6510 |
Sch 5 | 1 " 25.4 |
1.315 " 33.401 |
1.185 " 30.099 |
0.065 " 1.6510 |
Sch 5 | 1.25 " 31.75 |
1.66 " 42.164 |
1.530 " 38.862 |
0.065 " 1.6510 |
Sch 5 | 1.5 " 38.1 |
1.9 " 48.26 |
1.770 " 44.958 |
0.065 " 1.6510 |
Sch 5 | 2 " 50.8 |
2.375 " 60.325 |
2.245 " 57.023 |
0.065 " 1.6510 |
Sch 5 | 2.5 " 63.5 |
2.875 " 73.025 |
2.709 " 68.8086 |
0.083 " 2.1082 |
Sch 5 | 3 " 76.2 |
3 1/2 " 88.90 |
3.334 " 84.6836 |
0.083 " 2.1082 |
Sch 5 | 3.5 " 88.9 |
4 " 101.6 |
3.834 " 97.3836 |
0.083 " 2.1082 |
Sch 5 | 4 " 101.6 |
4.500 " 114.3 |
4.334 " 110.0836 |
0.083 " 2.1082 |
Sch 5 | 6 " 152.4 |
6.625 " 168.275 |
6.407 " 162.7378 |
0.109 " 2.7686 |
Sch 5 | 8.00 " 203.2 |
8.625 " 219.075 |
8.407 " 213.5378 |
0.109 " 2.7686 |
Sch 5 | 10.00 " 254 |
10.75 " 273.05 |
10.482 " 266.2428 |
0.134 " 3.4036 |
Schedule 5 | 12.00 " 304.8 |
12.75 " 323.85 |
12.420 " 315.468 |
0.165 " 4.191 |
Schedule 10 | 0.75 " 19.05 |
1.05 " 26.67 |
0.884 " 22.4536 |
0.083 " 2.1082 |
Schedule 10 | 1 " 25.4 |
1.315 " 33.401 |
1.097 " 27.8638 |
0.109 " 2.7686 |
Schedule 10 | 1.25 " 31.75 |
1.66 " 42.164 |
1.530 " 38.862 |
0.109 " 2.7686 |
Schedule 10 | 1.5 " 38.1 |
1.9 " 48.26 |
1.770 " 44.958 |
0.109 " 2.7686 |
Schedule 10 | 2 " 50.8 |
2.375 " 60.325 |
2.157 " 54.7878 |
0.109 " 2.7686 |
Schedule 10 | 2.5 " 63.5 |
2.875 " 73.025 |
2.635 " 66.929 |
0.12 " 3.0480 |
Sch 10 | 3 " 76.2 |
3 1/2 " 88.90 |
3.260 " 82.804 |
0.12 " 3.0480 |
Sch 10 | 3.5 " 88.9 |
4 " 101.6 |
3.760 " 95.504 |
0.12 " 3.0480 |
Sch 10 | 4 " 101.6 |
4.500 " 114.3 |
4.260 " 108.204 |
0.12 " 3.0480 |
Sch 10 | 6 " 152.4 |
6.625 " 168.275 |
6.357 " 161.4678 |
0.134 " 3.4036 |
Sch 10 | 8.00 " 203.2 |
8.625 " 219.075 |
8.329 " 211.5566 |
0.148 " 3.7592 |
Sch 10 | 10.00 " 254 |
10.75 " 273.05 |
10.420 " 264.668 |
0.160 " 4.064 |
Sch 10 | 12.00 " 304.8 |
12.75 " 323.85 |
12.390 " 314.706 |
0.180 " 4.572 |
Sch 40 | 0.75 " 19.05 |
1.05 " 26.67 |
0.824 " 20.9296 |
0.113 " 2.8702 |
Schedule 40 | 1 " 25.4 |
1.315 " 33.401 |
1.049 " 26.6446 |
0.113 " 2.8702 |
Schedule 40 | 1.25 " 31.75 |
1.66 " 42.164 |
1.380 " 35.052 |
0.140 " 3.556 |
Schedule 40 | 1.5 " 38.1 |
1.9 " 48.26 |
1.610 " 40.894 |
0.145 " 3.683 |
Schedule 40 | 2 " 50.8 |
2.375 " 60.325 |
2.067 " 52.5018 |
0.154 " 3.9116 |
Schedule 40 | 2.5 " 63.5 |
2.875 " 73.025 |
2.469 " 62.7126 |
0.203 " 5.1562 |
Schedule 40 | 3 " 76.2 |
3 1/2 " 88.90 |
3.068 " 77.9272 |
0.216 " 5.4864 |
Schedule 40 | 3.5 " 88.9 |
4 " 101.6 |
3.548 " 90.1192 |
0.226 " 5.7404 |
Schedule 40 | 4 " 101.6 |
4.500 " 114.3 |
4.026 " 102.2604 |
0.237 " 6.0198 |
Schedule 40 | 6 " 152.4 |
6.625 " 168.275 |
6.065 " 154.051 |
0.280 " 7.112 |
Schedule 40 | 8.00 " 203.2 |
8.625 " 219.075 |
7.981 " 202.7174 |
0.322 " 8.1788 |
Schedule 40 | 10.00 " 254 |
10.75 " 273.05 |
10.020 " 254.508 |
0.365 " 9.271 |
Schedule 40 | 12.00 " 304.8 |
12.75 " 323.85 |
11.938 " 303.2252 |
0.406 " 10.3124 |
Schedule 40 | 14.00 " 355.6 |
14 " 355.6 |
13.124 " 333.3496 |
0.438 " 11.1252 |
Schedule 40 | 16.00 " 406.4 |
16 " 406.4 |
15.000 " 381 |
0.500 " 12.7 |
Schedule 80 | 0.75 " 19.05 |
1.05 " 26.67 |
0.742 " 18.8468 |
0.154 " 3.9116 |
Schedule 80 | 1 " 25.4 |
1.315 " 33.401 |
0.957 " 24.3078 |
0.179 " 4.5466 |
Schedule 80 | 1.25 " 31.75 |
1.66 " 42.164 |
1.278 " 32.4612 |
0.191 " 4.8514 |
Schedule 80 | 1.5 " 38.1 |
1.9 " 48.26 |
1.500 " 38.1 |
0.200 " 5.08 |
Schedule 80 | 2 " 50.8 |
2.375 " 60.325 |
1.939 " 49.2506 |
0.218 " 5.5372 |
Schedule 80 | 2.5 " 63.5 |
2.875 " 73.025 |
2.323 " 59.0042 |
0.276 " 7.0104 |
Schedule 80 | 3 " 76.2 |
3 1/2 " 88.90 |
2.900 " 73.66 |
0.300 " 7.62 |
Schedule 80 | 3.5 " 88.9 |
4.500 " 114.3 |
3.826 " 97.1804 |
0.337 " 8.5598 |
Schedule 80 | 4 " 101.6 |
5.563 " 141.3002 |
4.813 " 122.2502 |
0.375 " 9.5250 |
Schedule 80 | 6 " 152.4 |
6.625 " 168.275 |
5.761 " 146.3294 |
0.432 " 10.9728 |
Schedule 80 | 8.00 " 203.2 |
8.625 " 219.075 |
7.625 " 193.675 |
0.500 " 12.7 |
Schedule 80 | 10.00 " 254 |
10.75 " 273.05 |
9.564 " 242.9256 |
0.593 " 15.0622 |
Schedule 80 | 12.00 " 304.8 |
12.75 " 323.85 |
11.376 " 288.9504 |
0.687 " 17.4498 |
Schedule 80 | 14.00 " 355.6 |
14 " 355.6 |
12.500 " 317.5 |
0.750 " 19.05 |
Schedule 80 | 16.00 " 406.4 |
16 " 406.4 |
14.314 " 363.5756 |
0.843 " 21.4122 |
Titanium Pipe Price
Description | Price in india |
ASTM B338 Grade 2 Titanium Tube for Heat Exchanger and Condenser | $ 20-48 / kg |
Ti Grade 2 ASTM B862 Titanium Tube | $ 21.9-22.5 / kg |
15mm Titanium Tube Grade 2 for Heat Condenser | $ 16.5-23.9 / kg |
Titanium Tube (ASTM B338 Grade 2, TA1, TA2, TA4) | $ 18-21.5 / kg |
Grade 2 Titanium Seamless Tube Manufacturer with Rolled | $ 12-13 / kg |
Polished Welded Grade 2 Titanium Tube | $ 22-28 / kg |
Grade 2 Titanium tube Thin Wall Thickness | $ 16.5-23.9 / kg |
ASTM B862 /ASME Sb862 Grade 2 Titanium Welded Tube | $ 30-52 / kg |
Titanium Alloy Pipes and Tubes Dimensions Price List Chart
OD(mm) |
8.0-10.0 |
10.0-15.0 |
15.0-20.0 |
20.0-25.0 |
25.0-30.0 |
30.0-35.0 |
WT(mm) |
0.15-2.0 |
0.2-2.0 |
0.4-2.7 |
0.45-3.2 |
0.45-3.3 |
0.45-3.4 |
OD(mm) |
35.0-40.0 |
41.0-45.0 |
46.0-50.0 |
51.0-55.0 |
56.0-60.0 |
61.0-65.0 |
WT(mm) |
0.5-3.5 |
0.6-3.8 |
0.6-3.8 |
0.6-4.4 |
0.8-4.6 |
0.9-4.7 |
OD(mm) |
66.0-70.0> |
71.0-75.0> |
76.0-95.0 |
96.0-114.0 |
|
|
WT(mm) |
1.0-4.9 |
1.2-6.0> |
1.2-7.1 |
1.3-7.5 |
|
|
Industry We Serve
