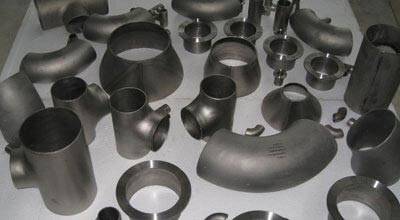

Titanium Pipe Fittings
Titanium Pipe Fittings are well-known for their high
tensile strength, light weight, and excellent corrosive
resistance. Although having the same strength as steel, titanium
is approximately 40 percent lighter in weight. We PAKSHAL STEEL
offer high-grade
Titanium Pipe Fittings
that carries beneficial features such as excellent chemical as
well as mechanical properties, accurate dimensional accuracy,
hardness, high tensile strength, and Anti Corrosive Metal. These
Pipe fittings possess higher tensile strength to Density Ratio.
Titanium Fittings are known for its low
density and low weight. It is also extremely resistant to
corrosion by either heat or chemical environments. These pipe
fittings offer a wide spectrum of strength and fracture
toughness.
Titanium Pipe Fittings, Titanium Buttweld Fittings, Titanium Elbow, Titanium Pipe Fittings Suppliers.
- What is Titanium Pipe Fittings
- Specification For Titanium Pipe Fittings
- Titanium Pipe Fittings Equivalent Grades
- Chemical Composition of Titanium Pipe Fittings
- Mechanical Properties of Titanium Pipe Fittings
- Dimensions of Titanium Pipe Fittings
- Manufacturing Standards of Titanium Pipe Fittings
- Dimensions: ANSI/ASME B16.9, B16.28, MSS-SP-43
- Titanium Pipe Fittings Industries
- Export Destination of Titanium Pipe Fittings
- Searches Related to Titanium Pipe Fittings
Not only has the flow direction altered, but certain Titanium Pipe Fittings have also modified the flow rate. Because pipe length is limited, fittings assist in preserving the attachment and therefore improving the reliability and efficiency of any given industry. Additionally, these Ti Pipe Fittings are resistant to stress corrosion cracking, pitting, oxidation, corrosion, and crevice corrosion. All of these characteristics are required to perform any crucial commercial application. These Pipe Fittings and Forged Pipe Fittings are also offered resistance to stress corrosion cracking, pitting, oxidation, corrosion, crevice corrosion.
Titanium is 60 times denser that of aluminum yet is twice as strong. It has the same strength as steel but is half the weight. Titanium Pipe Fittings may be combined with other metals, notably nickel, to create a wide range of titanium-based goods. These are useful in circumstances when a more flexible or much more robust environments. We have different types of Titanium grades like Titanium Forged Fittings, Titanium Fasteners, Titanium Pipe and Tubes and many more
Titanium Reducer, Titanium Pipe Fittings Price, Titanium Tee.
Good attributes to offer-
Titanium pipe fittings are having various good attributes to
offers like-
• Good chemical and mechanical properties
• Good dimensional accuracy
• Hardness
• Stress corrosion cracking/pitting/oxidation/corrosion/crevice
corrosion resistance
• High tensile strength
• Anti-corrosive
Testing-
In the corporation, few tests are given high importance for
purpose of quality check-
• Hardness test
• Pitting test
• Intergranular corrosion test
• Mechanical/chemical test
• Flattening/flaring test
Packaging-
The product is packed using the effective technique to prevent
from getting severe damages like-
• Wooden crates/pallets/boxes
• Carton boxes
• Shrink-Wrapped
What are titanium pipe fittings used for?
Titanium Pipe Fittings are used in a variety of applications where strength, corrosion resistance, and heat resistance are important factors. Some common uses include chemical processing, oil, and gas, marine, aerospace & medical industries.
Are titanium pipe fittings strong?
Titanium Fittings are strong & offer a high strength-to-weight ratio, also making them suitable for use in high-stress applications.
What are the Uses of Titanium Pipe Fittings?
Titanium Pipe Fittings are used in various industries for applications where strength, corrosion resistance, and heat resistance are important. Common industries: chemical processing, oil & gas, marine, aerospace, medical.
Titanium End Cap, Titanium Cap, Titanium Pipe Fittings Price.
Titanium Buttweld Fittings
Titanium Elbow
Titanium Tee
Titanium Pipes & Tubes Specification
Specification : ASTM B 363 / ASME SB 363
Size : ½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS
Type : Seamless / Welded / Fabricated
Dimensions : ANSI/ASME B16.9, B16.28, MSS-SP-43
Schedule : SCH 10, SCH20, SCH30, SCH40
Titanium Pipe Fitting Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Titanium Gr 5 | 3.7165 | R56400 |
Titanium Buttweld Fittings Chemical Composition
| Grade | C | N | O | H | Ti | Fe |
| Titanium Gr 2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | bal | 0.30 max |
| Titanium Gr 5 | 0.10 max | 0.05 max | 0.20 max | 0.015 max | bal | 0.40 max |
Titanium Pipe Fittings Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Gr.2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Titanium Pipe Fittings Dimensions :
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) |
I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ |
0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 |
0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 |
0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Manufacturing Standards of Titanium Pipe Fittings manufacturers in India & globally
| ASME B16.9 Titanium UNS R50400 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Dimensions: ANSI/ASME B16.9, B16.28, MSS-SP-43.
| Grade | Specification (mm) | Standard |
|---|---|---|
|
Gr2 (Pure Titanium)
Gr5 (Ti6Al4V) |
M (3-64) *L (5-300) or as your request |
GB DIN ASTM ASME ISO JIS |
|
M (3-64) *L (5-300) or as your request |
||
|
M (3-64) or as your request |
||
|
M (3-64) or as your request |
