Titanium Grade 2 Sheets & Plates
PAKSHAL STEEL is one of India's most reputable importers and exporters of various sorts of Titanium Grade 2 Sheets and Plates. Titanium Grade 2 Sheets are available in a variety of thicknesses, specifications, grades, and dimensions. Ti Grade Sheets are available in a variety of shapes and sizes, including Round, Square, Flat, and Hex, and have a high temperature treatable along with strength and ductility, as well as superior fabric ability and weld ability. This material is appropriate for tasks requiring strong corrosion resistance, such as aircraft building and chemical and industrial applications.
Titanium Grade 2 Sheet, Titanium Gr 2 Shim Plate Manufacturer, Buy Titanium Gr 2 Sheets, Titanium Grade 2 Shim Sheet, ASTM B348 Gr 2 Plate Manufacturer, Titanium Gr. 2 Plates Supplier, Titanium Grade 2 Plate, Largest Titanium Gr 2 Sheet Inventory in Mumbai.
- What is Titanium Grade 2 Sheets & Plates
- Titanium Grade 2 Sheets & Plates Specification
- Types Of Titanium Alloy Grade 2 Shim Sheet
- Titanium UNS R50400 Hot Rolled Plates Size Inch to MM
- Titanium Grade 2 Sheets & Plates Equivalent Grades
- Titanium Grade 2 Chemical Composition
- Titanium Grade 2 Mechanical Properties
- Titanium Grade 2 Sheets and Plates Imperial Dimensions
- Titanium Grade 2 Sheets and Plates Metric Dimensions
- Titanium Grade 2 Sheets and Plates Price List
- Titanium Grade 2 Sheets & Plates Industries
- Export Destination of Titanium Grade 2 Sheets & Plates
- Searches Related to Titanium Grade 2 Sheets & Plates
The melting point of the material is 1660 degrees. Because of the high melting point, the sheets and plates can be used in high-temperature applications. Titanium Gr 2 Plates is utilized in heat exchangers, boilers, and condenser components due to its high strength and temperature resistance. The sheets are also available as foils, coils, strips, and other custom shapes. The material is non-magnetic and extremely strong. Titanium Grade 2 Sheets and Titanium Grade 5 Sheets and Plates are one of the most popular grades of Titanium Sheets and Plates
Buy Titanium Gr 2 Sheets, Titanium Grade 2 Sheets Price, Titanium Grade 2 Shim Sheet, 3mm Titanium Grade 2 Sheet, Titanium Gr 2 Chequered Plate, UNS R50400 Sheets in Mumbai, India.
Titanium ASTM B265 Grade 2 Sheets has minimum yield
strength of 335MPA and a minimum tensile strength of 510MPA.
Titanium Sheets and Plates can also be found in
evaporators, reaction vessels, desalination facilities, and tube
heaters. These Sheets and Plates along with
Titanium Grade 23 Sheets and Plates
are mostly employed in turbine airframe and engine square-parts,
as well as surgical implants. They are also utilized in a
variety of chemical practice equipment, as well as aviation and
maritime applications. Titanium Alloy Sheets are widely utilized
in a variety of industries and are made using cutting-edge
technology and top quality raw materials with cutting-edge
properties.
We PAKSHAL STEEL ensure that the products
are been tested by our experienced staff, before they are
delivered to clients. We also customized these Sheets/ Plates as
per client’s requirements.
These Titanium Sheets/ Plates have few notable features like:
- Corrosion Resistance
- Precise Dimensions
- Can withstand High Pressure and Temperature loads Rust-resistant finish
- The transition from flange thickness to Pipe thickness should be as smooth as possible
- Ensure an even Distribution Of Stress
Importance of Titanium Grade 2 Sheets & Plates?
Titanium Grade 2 sheets & plates are important due to their high strength, low weight, corrosion resistance, biocompatibility, & ability to withstand high temperatures also these properties make them suitable for a wide range of applications in various industries, including aerospace, medical, chemical processing, and marine.
What are the uses of Titanium Grade 2 Sheets & Plates?
It is widely used because it combines excellent formability and moderate strength with superior corrosion resistance. This combination of properties makes Grade 2 Titanium Sheets ideal for a large variety of chemical and marine as well as aerospace and medical applications.
Is Grade 2 titanium sheets good?
This grade possesses good weldability, strength, ductility & formability. This makes Grade 2 titanium sheet the prime choice for many fields of applications, Architecture, and Power generation.
Titanium Grade 2 Sheet Price Per kg, Titanium Gr 2 Plate Data Sheet, Titanium Gr 2 Perforated Sheet.
Titanium Grade 2 Sheets & Plates Specification
Dimension : EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard : ASTM B265 / ASME SB265, AMS 4911
Size : 8mm to 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Titanium Alloy Grade 2 Sheets, Plates Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
Types Of Titanium Alloy Grade 2 Shim Sheet
Titanium Grade 2 Sheet
Titanium Grade 2 Plate
Titanium Grade 2 Shim Sheet

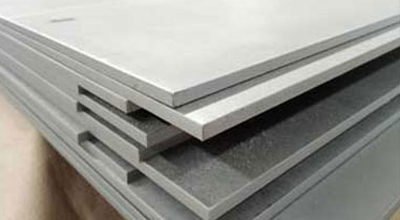

Grade 2 1mm Titanium Plate/Sheet TA1-TA11

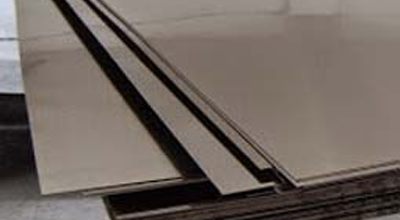

2*100*100mm Medical Titanium Plate Titanium Grade 2 Sheet

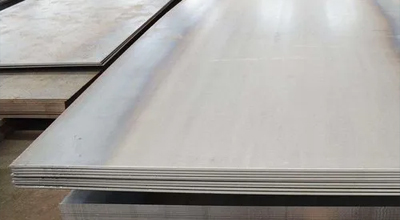

Cold/Hot Rolling Grade 2 Ti Plate and Sheet

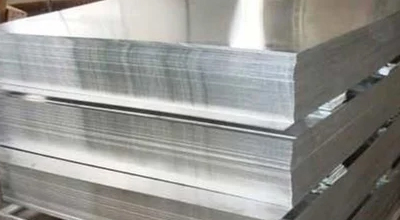

Ti Alloys Grade 2 Sheet, Shape: Rectangular, 2.5-5.5 milimeter

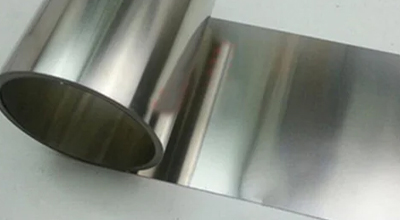

TI Grade 2 Shim Sheet, 1 to 5 milimeter

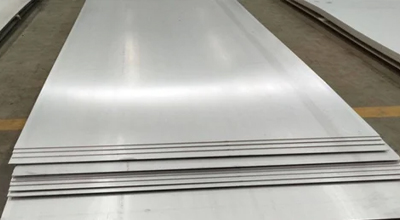

ASTM F67 0.6mm thickness Grade 2 titanium Sheet
Titanium UNS R50400 Hot Rolled Plates Size Inch to MM
| Stocked Sizes | |
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Titanium Alloy Grade 2 Shims Chemical Composition
| Grade | C | N | O | H | Ti | Fe |
| Titanium Gr 2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | bal | 0.30 max |
Titanium Grade 2 Plate, Sheet Mechanical Properties
| Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson's Ratio |
| 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
Titanium Grade 2 Sheets and Plates Imperial Dimensions
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Titanium Gr 5 | 3.7165 | R56400 |
Metric Dimensions Titanium Grade 2 Plates and Sheet
| Plate Surface finish | Thickness (mm) | Width (max mm) |
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
Titanium Grade 2 Sheets and Plates Price List
| ASTM B348 Gr 2 Plate Price | Titanium UNS R50400 Hot Rolled Plates Price per kg |
| Polishing Grade 2 0.3 milimeter Thin ti Sheet | $15.00-$20.00/ Kilogram |
| ti sheet 1 milimeter ti grade 2 plate titanium plate price per kg | $10.00-$18.00/ Kilogram |
| grade 1 grade 2 astm b265 thin titanium sheet | $2,000.00-$5,000.00/ Metric Ton |
| Grade 2 astm b265 titanium sheet | $20.00-$30.00/ Kilogram |
